X Series | X30
Flagship Quadruped for Industrial Intelligence

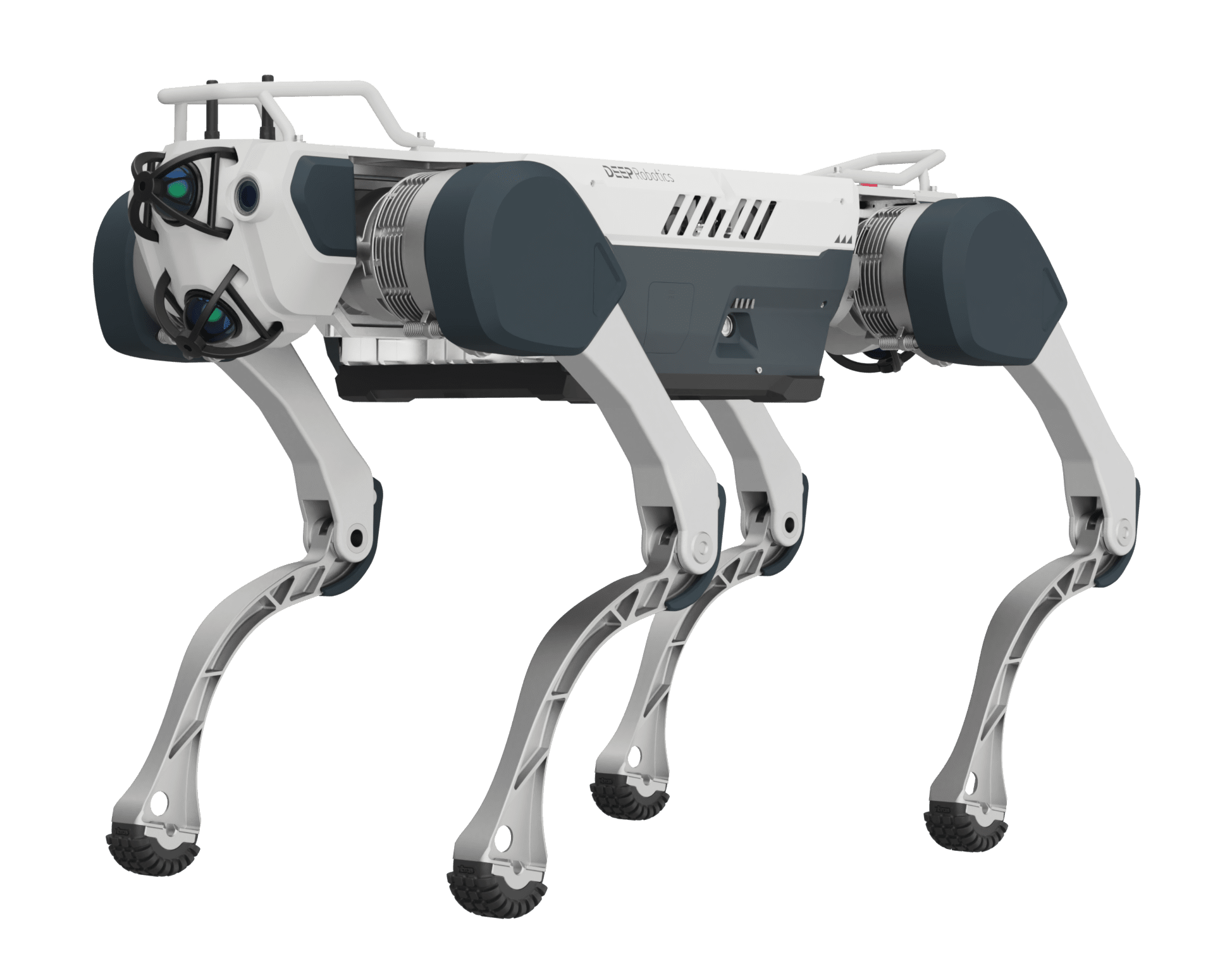

The X30 is DEEP Robotics’ premier industrial quadruped robot, purpose-built for demanding sectors like inspection, emergency response, surveying, security, and scientific research. It delivers resilient, high-performance operations with autonomy and precision.
DEEP Robotics powers missions for companies worldwide.

Superior Terrain Agility & Obstacle Handling
The X30 is engineered to conquer the toughest industrial landscapes with ease. It climbs industrial and open-riser stairs at gradients up to 45°, tackles uneven surfaces, and clears obstacles of 20 cm or more without losing stability. Advanced traction control and adaptive gait algorithms allow it to maintain balance on slippery, loose, or shifting terrain such as gravel, sand, or wet metal grating. Whether navigating narrow catwalks, maneuvering through cluttered factory floors, or responding to urgent field tasks, the X30 moves with precision and confidence—ensuring inspections and interventions remain uninterrupted in any environment.
Fusion Perception for Any Lighting Condition
The X30 integrates multi-sensor fusion technology—combining LiDAR, depth cameras, infrared imaging, and high-resolution visual sensors—to deliver exceptional situational awareness in all environments. This advanced perception system allows the robot to navigate autonomously in complete darkness, under intense glare from sunlight or industrial lighting, and through rapidly changing illumination such as tunnel entrances or storm conditions. By continuously cross-referencing data from multiple sensors, the X30 maintains accurate mapping, obstacle detection, and path planning, ensuring inspections, patrols, and emergency operations proceed seamlessly 24/7 without being hindered by lighting constraints.
Extended Endurance
The X30 delivers up to 25% longer battery life than previous models, enabling extended inspection routes and prolonged field missions without interruption. Its quick-release battery system is designed for rapid, tool-free swaps, allowing operators to replace power packs in seconds and keep the robot in continuous operation. This capability is especially critical for industrial inspections, security patrols, and emergency response scenarios, where every minute of uptime matters. Whether deployed in remote facilities, expansive power corridors, or disaster zones, the X30’s enhanced endurance and fast turnaround keep missions running efficiently and without costly delays.
X30 Product Specification
Dimensions & Weight
- Standing Size: 1000 × 695 × 470 mm
- Weight (with battery): 56 kg
Mobility & Terrain Capability
- Maximum Speed: ≥ 4 m/s
- Climbable Slope: ≤ 45°
- Obstacle Clearance: ≥ 200 mm
Protection & Environmental Resilience
- Ingress Protection: IP67
- Operational Temperature: -20 °C to +55 °C
Battery & Endurance
- Continuous Operation: 2.5 to 4 hours
- Patrol Range: ≥ 10 km
Connectivity & Interfaces
- Communication: Ethernet, optional USB 2.0, USB 3.0, Wi‑Fi
- Power Supply: 72V Battery
